Feature Trial: Isolated Geometry Verification

Testing a single hole, snap, wall, clip, or hinge before committing to full-scale component manufacturing.

Classification: Physical Trial Ledger
Method Focus: Single Variable Isolation
Slicer Target: PrusaSlicer 2.9.6
Core Principle One print. One question. One observable result.

Execute this workbook before printing full-scale assemblies to document physical tolerances.

Request This Workbook
Feature Trial
Specimen Trial Reference: Feature Trial ISO/ASTM 52900 Aligned

Methodology Overview

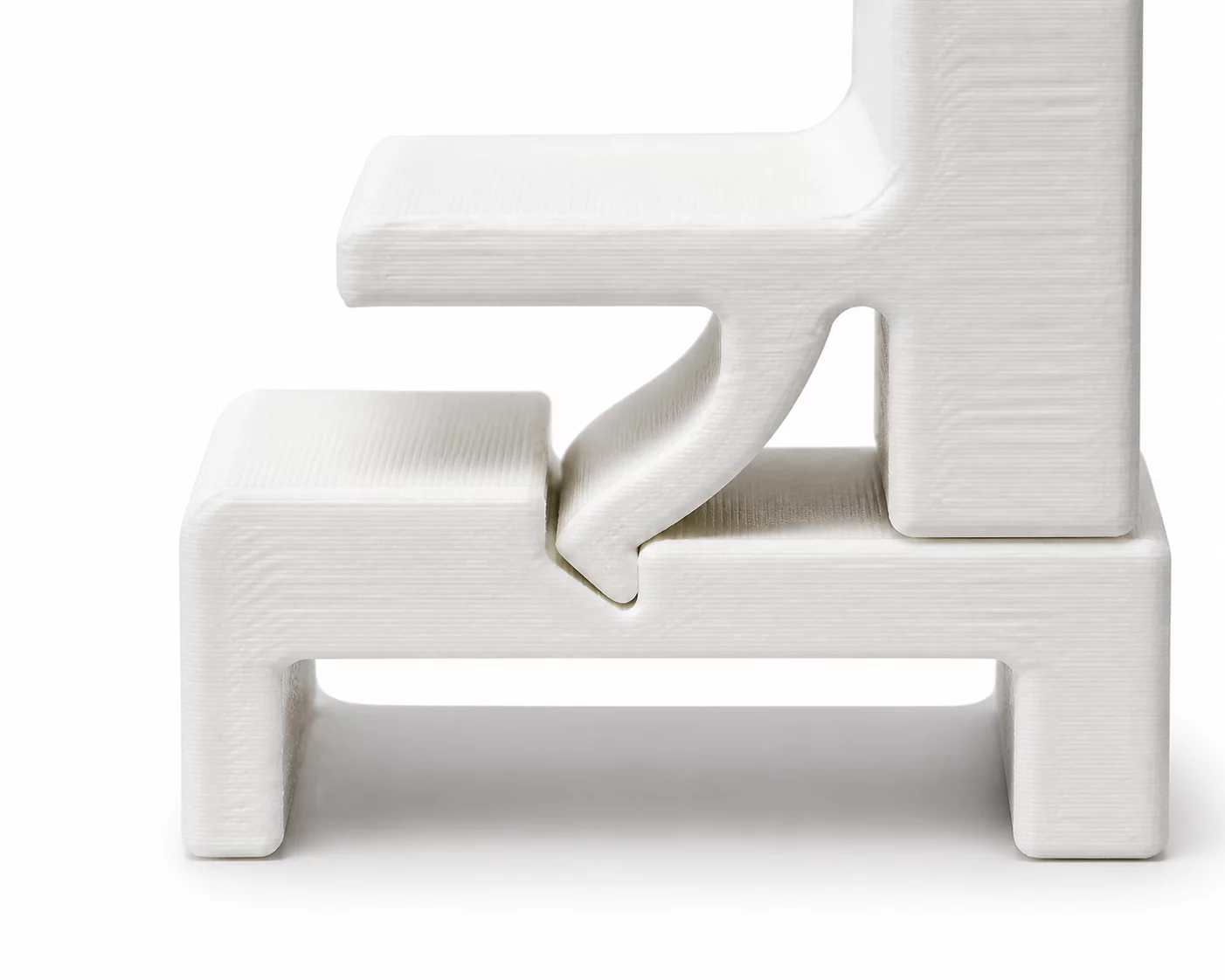

Testing a single hole, snap, wall, clip, or hinge.

Every iteration in physical manufacturing demands clear boundaries. By isolating critical functional features—such as cantilever snap joints, thin flex hinges, or internal screw bosses—prototyping teams eliminate guesswork before full parts enter the print bed. Printing only the isolated geometry saves up to 85% in material waste and provides conclusive physical feedback within twenty minutes instead of overnight print cycles.

Interactive Verification Protocol

Stage 1: Establish the Isolated Variable

Define the single physical question this trial must answer. Do not modify slicer flow rate, acceleration, and layer height at the same time.

  • Document specimen nominal dimensions in CAD.
  • Note filament spool ID and measured caliper diameter.
  • Lock slicer profile version to PrusaSlicer 2.9.6 default.

Stage 2: Execution and Slicing Control

Slice only the critical feature geometry to minimize run duration while maintaining identical cooling thresholds.

  • Restrict test specimen volume to under 15 cubic centimeters.
  • Record bed temperature and ambient enclosure state.
  • Tag test artifact directly with engraved specimen number.

Stage 3: Measurement & Ledger Sign-off

Measure using micrometers or gauge pins, and record definitive PASS/FAIL observation into your testing ledger.

  • Confirm mating friction or dimensional clearance.
  • Photograph specimen under macro lighting.
  • Archive findings before adjusting the next single variable.

Ledger Parameter Matrix

Parameter Field Standard Value Observation Target
FEATURE-TYPE Snap / Hinge / Boss Isolated geometric focus point
WALL-LOOPS 3 - 5 Perimeters Cantilever arm flex resistance without delamination
LAYER-HGT 0.15 mm - 0.20 mm Z-axis notch sensitivity and radius formation
EXTRUSION-WIDTH 0.42 mm - 0.45 mm Thin-wall fill completeness and pin core density
