Repeatability Trial

Evaluating multiple identical parts across consecutive print beds to measure statistical consistency, mechanical variance, and process stability.

Classification: Physical Trial Ledger
Method Focus: Single Variable Isolation
Slicer Target: PrusaSlicer 2.9.6
Core Principle One print. One question. One observable result.

Execute this workbook before printing full-scale assemblies to document physical tolerances.

Request This Workbook

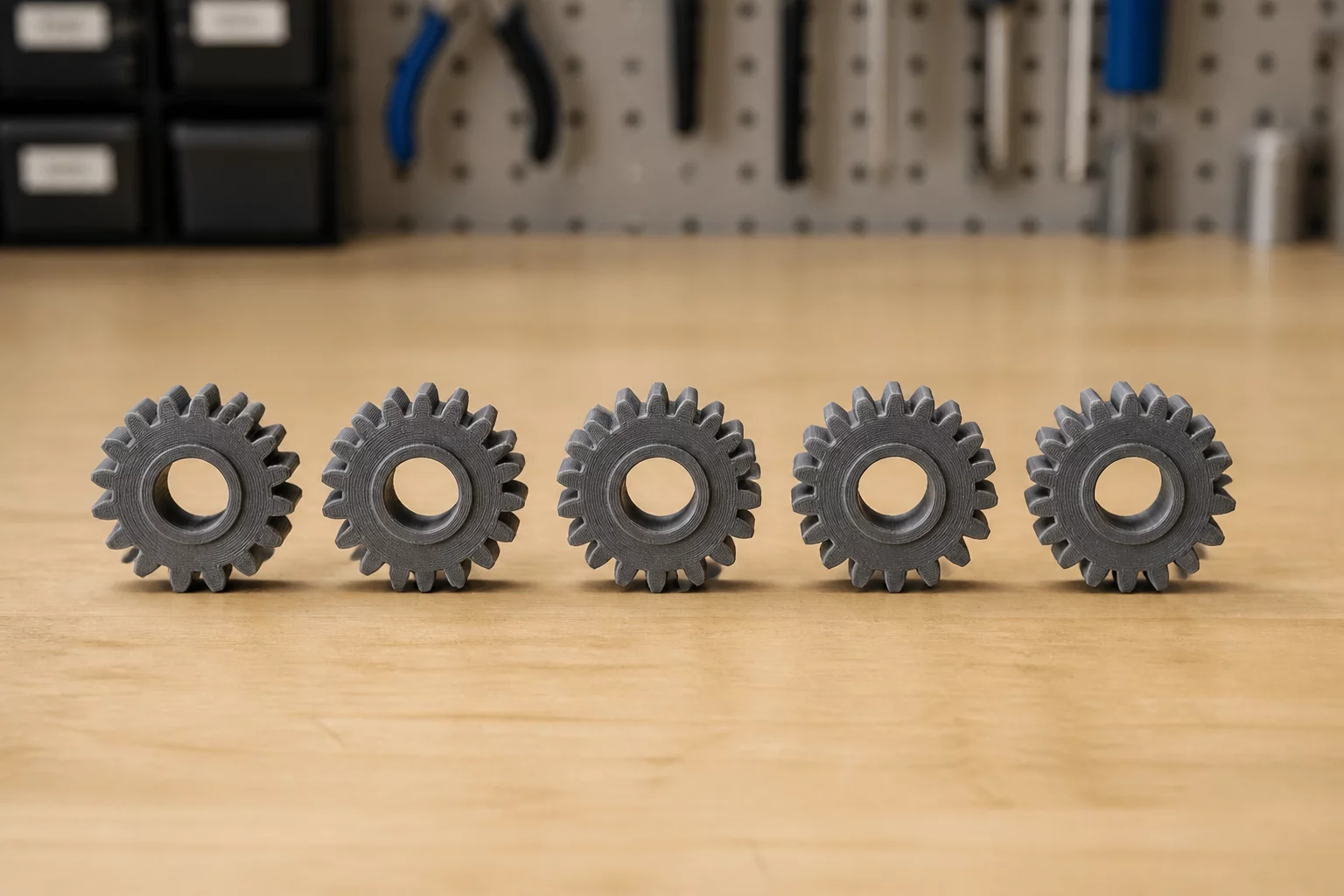

Repeatability Trial
Specimen Trial Reference: Repeatability Trial ISO/ASTM 52900 Aligned

Methodology Overview

Evaluating multiple identical parts for consistency.

Prototyping and low-volume production workflows demand knowing whether a single tuned model reproduces accurately across multiple successive runs. The Repeatability Trial establishes clear measurement thresholds across five consecutive specimens to isolate mechanical drift, thermal changes, bed position bias, and dimensional deviations without altering several slicer variables simultaneously.

Interactive Verification Protocol

Stage 1: Establish the Isolated Variable

Define the single physical question this trial must answer. Do not modify slicer flow rate, acceleration, and layer height at the same time.

  • Document specimen nominal dimensions in CAD.
  • Note filament spool ID and measured caliper diameter.
  • Lock slicer profile version to PrusaSlicer 2.9.6 default.

Stage 2: Execution and Slicing Control

Slice only the critical feature geometry to minimize run duration while maintaining identical cooling thresholds.

  • Restrict test specimen volume to under 15 cubic centimeters.
  • Record bed temperature and ambient enclosure state.
  • Tag test artifact directly with engraved specimen number.

Stage 3: Measurement & Ledger Sign-off

Measure using micrometers or gauge pins, and record definitive PASS/FAIL observation into your testing ledger.

  • Confirm mating friction or dimensional clearance.
  • Photograph specimen under macro lighting.
  • Archive findings before adjusting the next single variable.

Ledger Parameter Matrix

Parameter Field Standard Value Observation Target
TOL-CLEARANCE 0.15 mm - 0.25 mm Physical clearance during slip-fit test
LAYER-HGT 0.16 mm - 0.20 mm Z-axis stair-stepping and contour fidelity
WALL-LOOPS 3 - 4 Perimeters Perimeter stiffness and snap deflection load
INFILL-DENS 15% - 25% Gyroid Internal structural uniformity
