Surface Trial: Texture & Finish Assessment Ledger

Isolate layer step heights, external perimeter speeds, and nozzle temperatures to compare visual surface quality, gloss consistency, and tactile roughness before full product fabrication.

Classification: Physical Trial Ledger
Method Focus: Single Variable Isolation
Slicer Target: PrusaSlicer 2.9.6
Core Principle One print. One question. One observable result.

Execute this workbook before printing full-scale assemblies to document physical tolerances and surface aesthetics.

Request This Workbook
Surface Trial
Specimen Trial Reference: Surface Trial ISO/ASTM 52900 Aligned

Methodology Overview

Comparing the visual outcome of different settings requires controlled side-by-side evaluation rather than full component remakes.

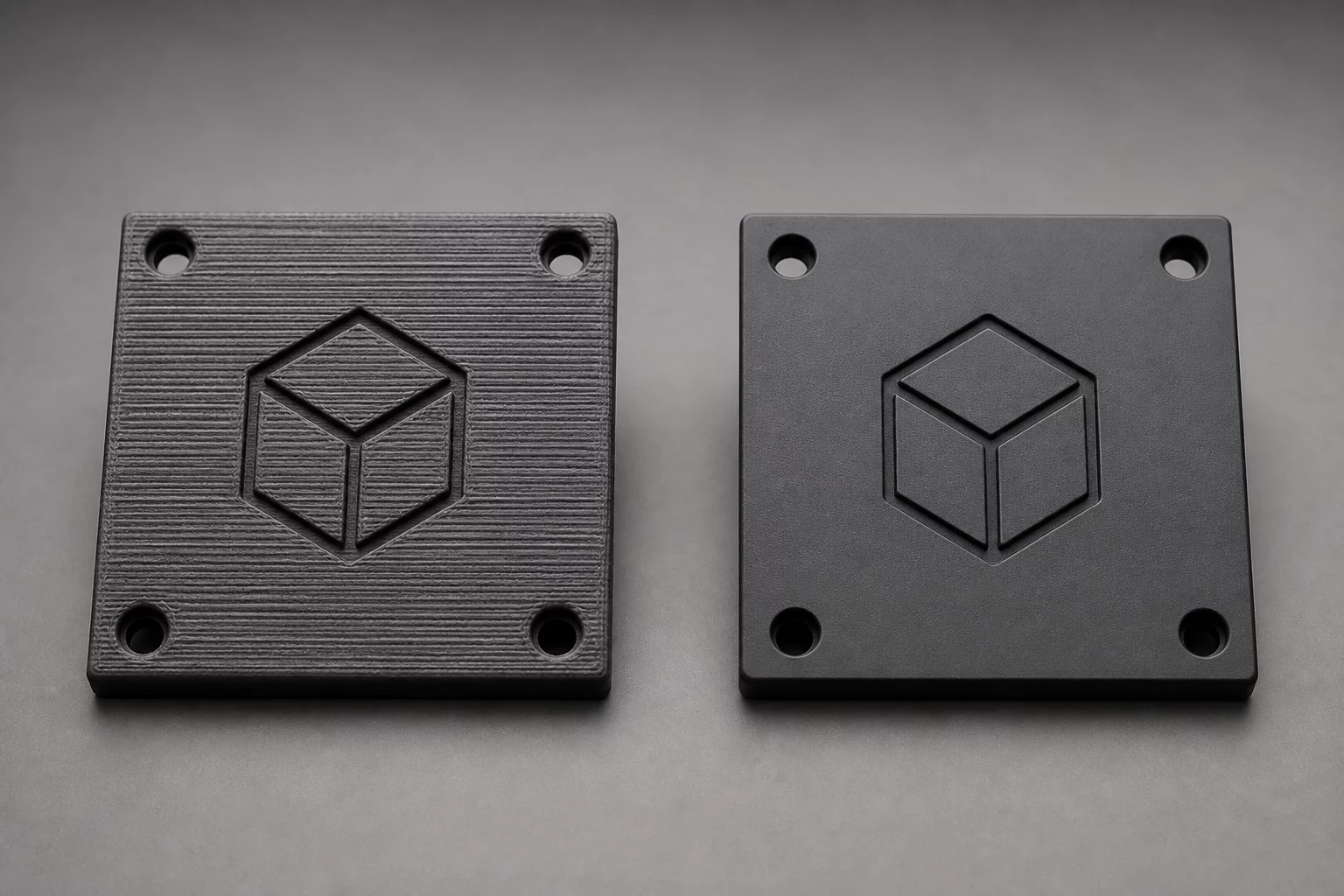

Every iteration in physical manufacturing demands clear boundaries. Prototyping teams avoid messy guesswork by comparing isolated surface patches under identical lighting conditions. Changing layer resolution from 0.20 mm down to 0.12 mm alters print duration drastically, yet its visual benefit depends strictly on curvature angles and material opacity. Running a focused surface coupon trial exposes stepping artifacts, seam placement visibility, and cooling-related gloss transitions across angled overhangs before launching comprehensive manufacturing runs.

Interactive Verification Protocol

Stage 1: Establish the Isolated Variable

Define the single physical question this trial must answer. Keep cooling fan curve, material batch, and wall count locked while varying only layer height or print speed.

  • Select a curved and planar test patch representing the critical user-facing face.
  • Verify consistent filament diameter across 3 measurement points.
  • Lock slicer profile version to PrusaSlicer 2.9.6 default.

Stage 2: Execution and Slicing Control

Slice only the critical surface swatch geometry to minimize cycle duration while retaining real thermal dissipation dynamics.

  • Limit specimen footprint to a compact 30x30 mm test swatch.
  • Align seam positions to a rear edge away from the inspection face.
  • Tag test artifact directly with engraved specimen number.

Stage 3: Measurement & Ledger Sign-off

Inspect the sample under uniform raking light at a 45-degree incidence angle and record definitive PASS/FAIL observation into your testing ledger.

  • Check for stair-step banding along gentle slopes and top fillets.
  • Photograph specimen under macro lighting.
  • Archive findings before adjusting the next single variable.

Ledger Parameter Matrix

Parameter Field Standard Value Observation Target
SURF-LAYER-HGT 0.12 mm vs 0.20 mm Stair-stepping threshold across shallow slopes
EXT-PERIM-SPD 35 mm/s - 45 mm/s Surface gloss uniformity and ringing suppression
SEAM-ALIGNMENT Rear / Aligned Visibility along primary viewing angles
TOP-SURF-FLOW 98% - 102% Pinhole closure and surface ridge elimination
